Compatibility with your appliance

3 models in the compatibility catalogue

Send a photo of the rating plate

Where is the model number?

Look for the sticker (rating plate) on the body: behind the door or lid, on the back or a side panel. You need the line «Model», «Mod.», «Type» or «E-Nr».

Tesy code

102297

Original Tesy

bit-bit code: 39525

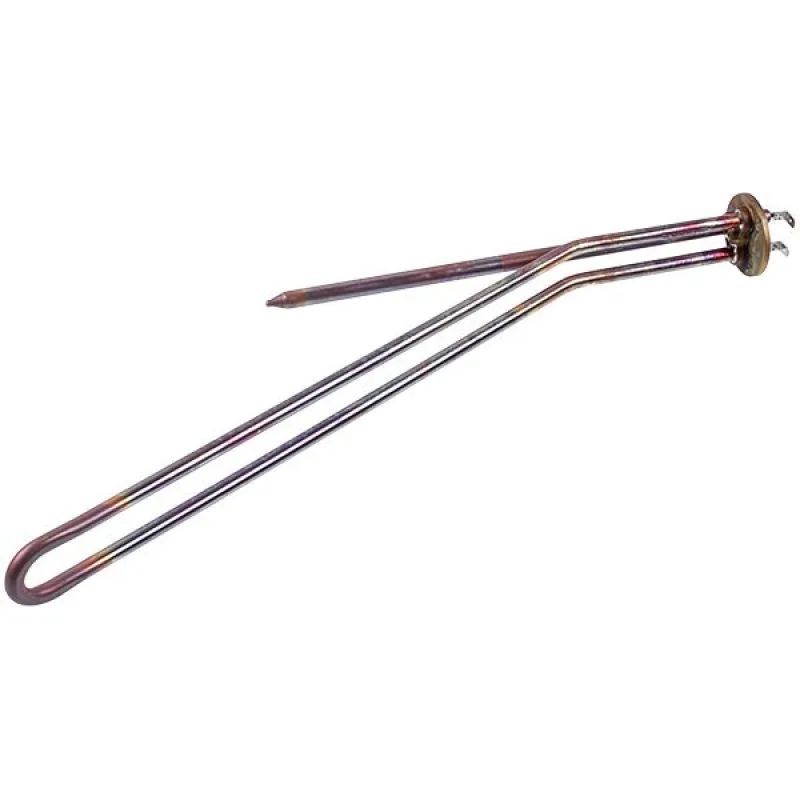

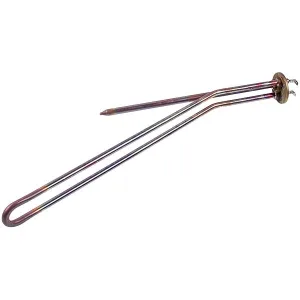

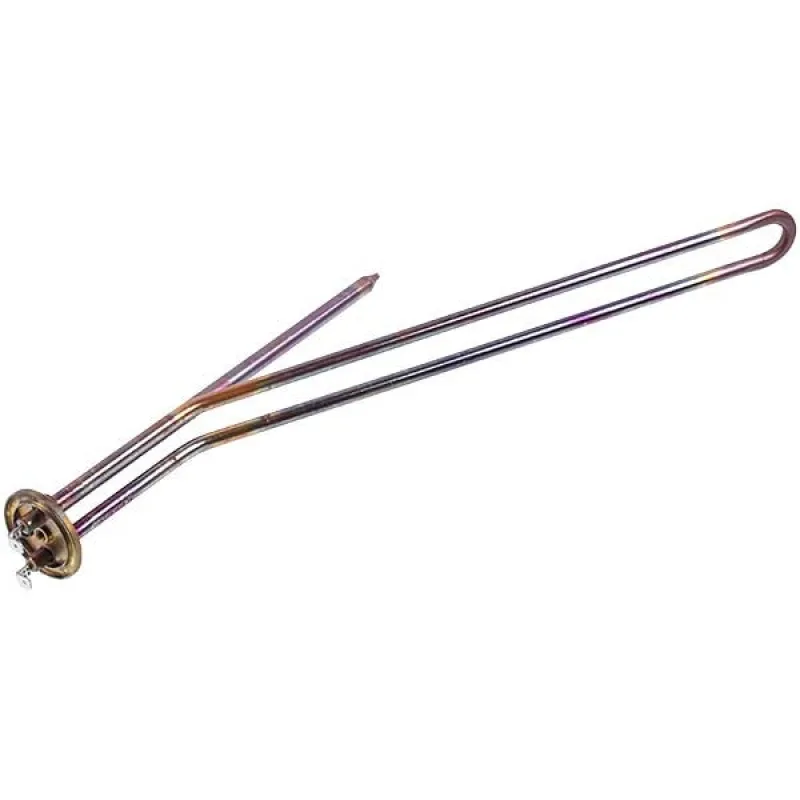

Copper wet heating element 2000 W for TESY water heater 102297

Name: Copper wet heating element 2000 W for TESY water heater 102297
Brand: Tesy
SKU: 39525
Price: 1935.00 UAH
Availability: InStock

1 935 ₴

Ships today, Wed 07.10

At the Nova Poshta branch Thu 08.10

Only 1 left

Delivery at Nova Poshta rates

Will it fit your appliance? Check by model

Just your phone — we will place the order for you by phone

We mark the parts that fit your model
Pay by card or on delivery
Cash on delivery — Nova Poshta fee 20 ₴ + 2%

Specifications

Heating element type: Open (wet)
Flange diameter: 48 mm
Length: 450 mm
Number of tubes: 1
Material: Copper
Power: 2000 W
Anode socket: Є
Sensor tube: Yes
Anode thread: M8
Fastening type: Flange-mounted
Product type: Spare part
Heating element with thermostat: Ні
Heating element shape: Bent

Description

Copper wet heating element, 2000 W, on a flange for a TESY water heater, code 102297. According to the compatibility database it fits 4 TESY models. Replace it when the heater does not heat water or trips the breaker. Check code 102297 and the flange diameter against the old part. Original TESY part. Element type: wet. Flange diameter: 48 mm. Length: 450 mm. Tubes: 1. Material: copper. Power: 2000 W. Anode socket: yes. Sensor tube: yes. Anode thread: M8. Thermostat: no. Shape: bent.

Codes and compatible parts

Part codes

102297Tesy

Fits

Fits: TESY GCH 503520 B12 TSR, TESY GCHMS 8045 20 A04 TSR, TESY GCHMS 8045 30 A04 TSR.

Fits: TESY GCH 503520 B12 TSR
Fits: TESY GCHMS 8045 20 A04 TSR
Fits: TESY GCHMS 8045 30 A04 TSR

Returns

14 days to return a part that was not installed, with its packaging kept. The buyer pays for return shipping.
A part with a manufacturing defect is replaced or refunded, and we pay for shipping.

Full return terms
