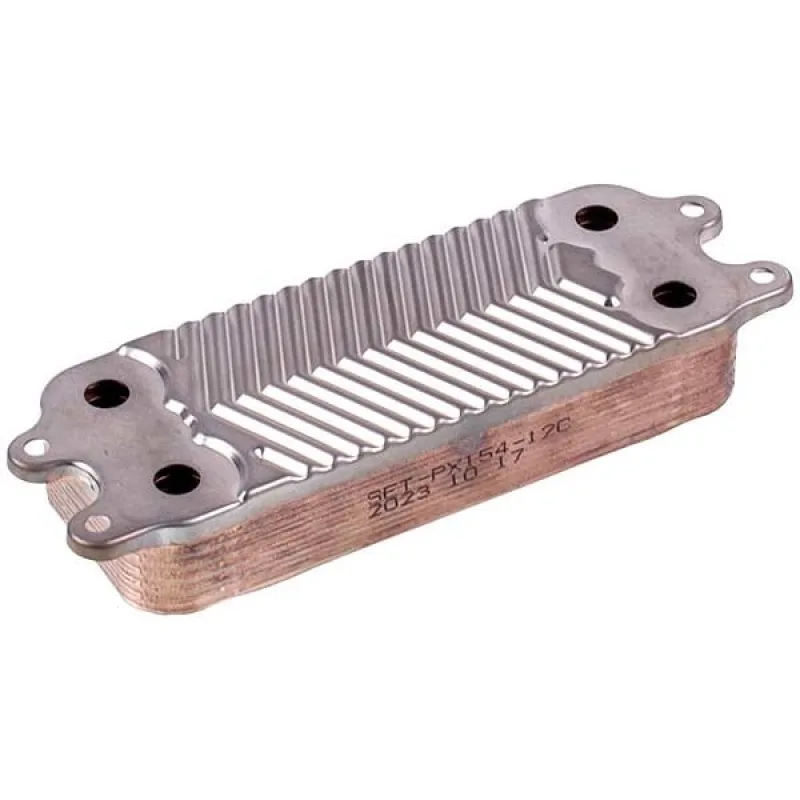

DHW heat exchanger 12 plates for gas boiler 0020020018

Photo 1 of 3

Compatibility with your appliance

No compatibility data for this part yet.

Send a photo of the rating plate
Where is the model number?

Look for the sticker (rating plate) on the body: behind the door or lid, on the back or a side panel. You need the line «Model», «Mod.», «Type» or «E-Nr».

Part code
0020020018-1

bit-bit code: 50916

DHW heat exchanger 12 plates for gas boiler 0020020018

2 977 ₴

Ships today, Wed 07.10

At the Nova Poshta branch Thu 08.10

Only 1 left

Delivery at Nova Poshta rates

Just your phone — we will place the order for you by phone

  • We mark the parts that fit your model
  • Pay by card or on delivery
  • Cash on delivery — Nova Poshta fee 20 ₴ + 2%

Specifications

Part type
Heat exchanger

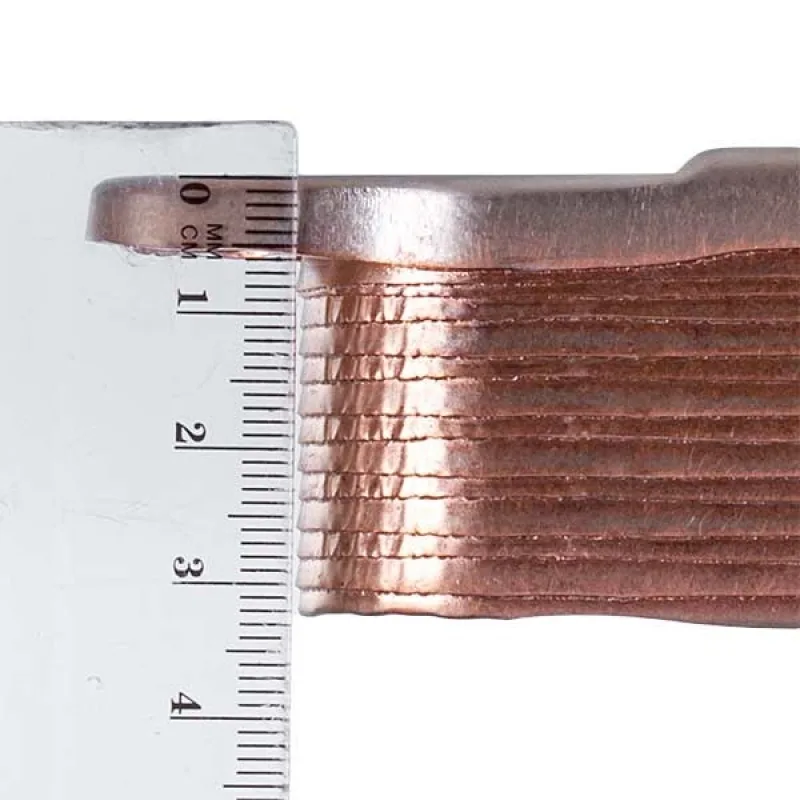

Depth
31 mm

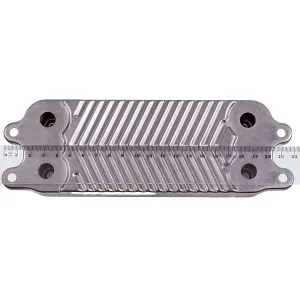

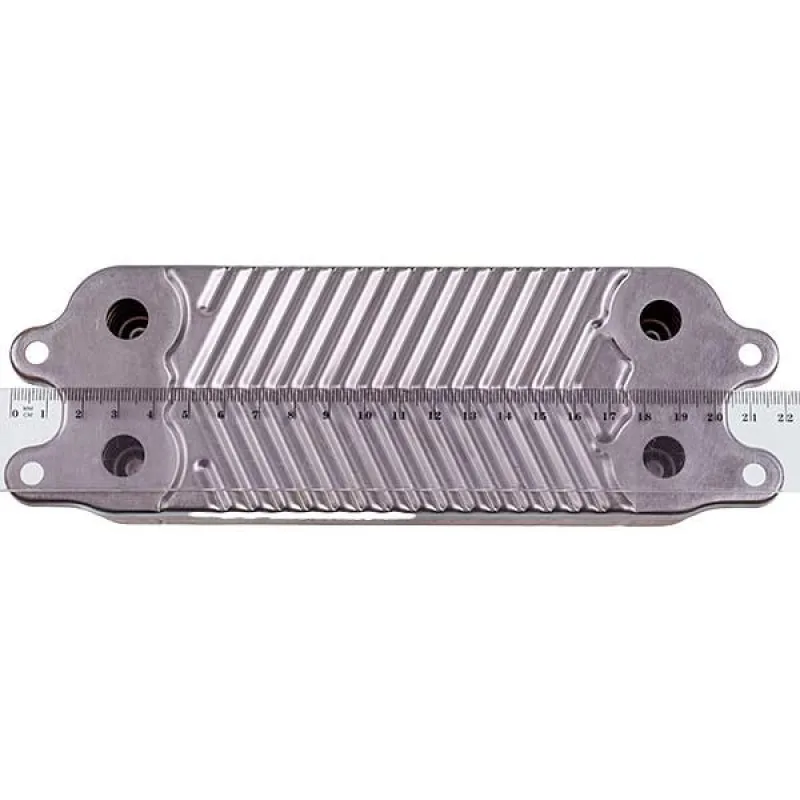

Length
190 mm
Number of plates
12
Material
Copper
Hole spacing
154 mm
Mounting centre distance
205 mm
Fastening type
4 lugs
Heat exchanger type
DHW heat exchangers, secondary, plate-type
Hole spacing (width)
40 mm
Width
73 mm

Description

Secondary DHW plate heat exchanger 0020020018 with 12 plates for gas boilers, mounted on 4 lugs. It transfers heat from the heating circuit to the tap water. Signs of failure: hot water heats poorly or the temperature jumps, heating pressure rises when a tap is open, the exchanger is clogged with scale. Before ordering, check code 0020020018, the dimensions and hole spacing against the old exchanger. Number of plates: 12 Length: 190 mm Width: 73 mm Depth: 31 mm Distance between holes: 154 mm Width between holes: 40 mm Distance between mounting centres: 205 mm Mounting type: 4 lugs Material: copper Heat exchanger type: DHW, secondary, plate

Codes and compatible parts

Part codes

  • 0020020018-1

Returns
  • 14 days to return a part that was not installed, with its packaging kept. The buyer pays for return shipping.
  • A part with a manufacturing defect is replaced or refunded, and we pay for shipping.
