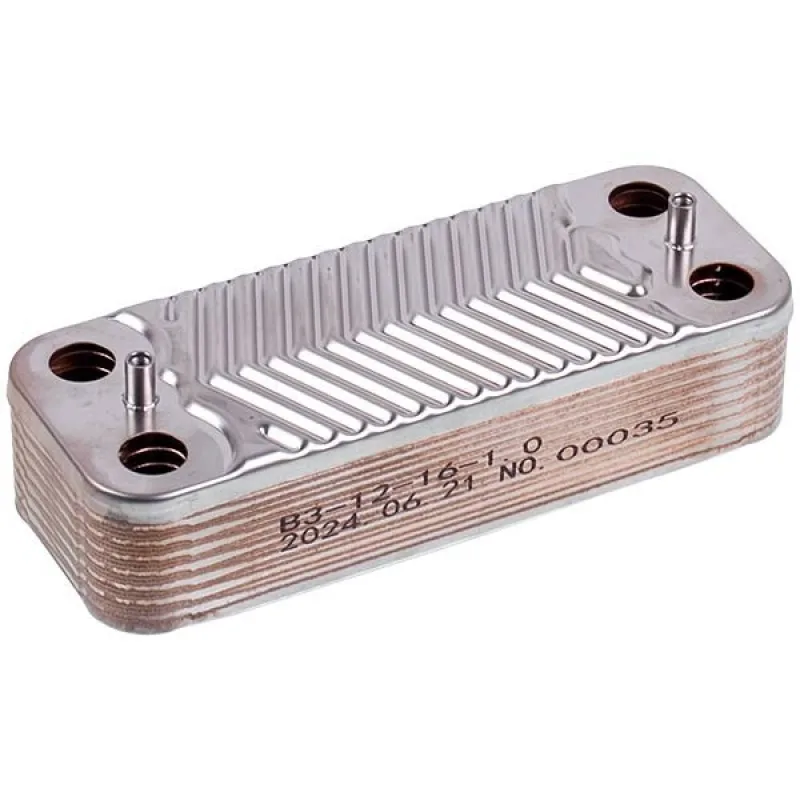

DHW heat exchanger 16 plates for gas boiler 7006951209

Photo 1 of 3

Compatibility with your appliance

No compatibility data for this part yet.

Send a photo of the rating plate
Where is the model number?

Look for the sticker (rating plate) on the body: behind the door or lid, on the back or a side panel. You need the line «Model», «Mod.», «Type» or «E-Nr».

Part code
7006951209-1

bit-bit code: 50972

DHW heat exchanger 16 plates for gas boiler 7006951209

3 896 ₴

Ships today, Wed 07.10

At the Nova Poshta branch Thu 08.10

Only 1 left

Delivery at Nova Poshta rates

Just your phone — we will place the order for you by phone

  • We mark the parts that fit your model
  • Pay by card or on delivery
  • Cash on delivery — Nova Poshta fee 20 ₴ + 2%

Specifications

Part type
Heat exchanger

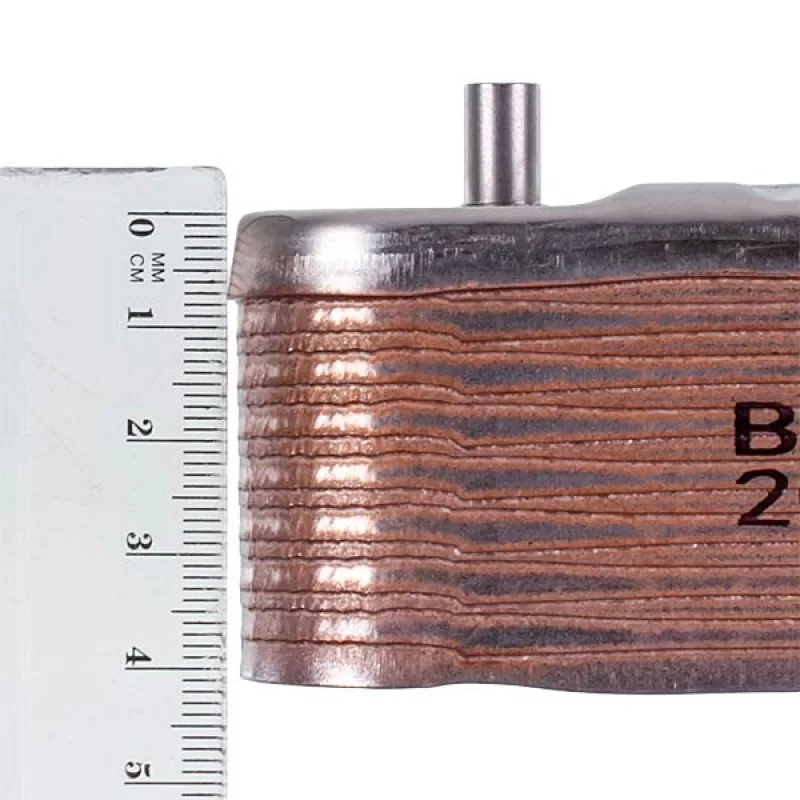

Depth
43 mm

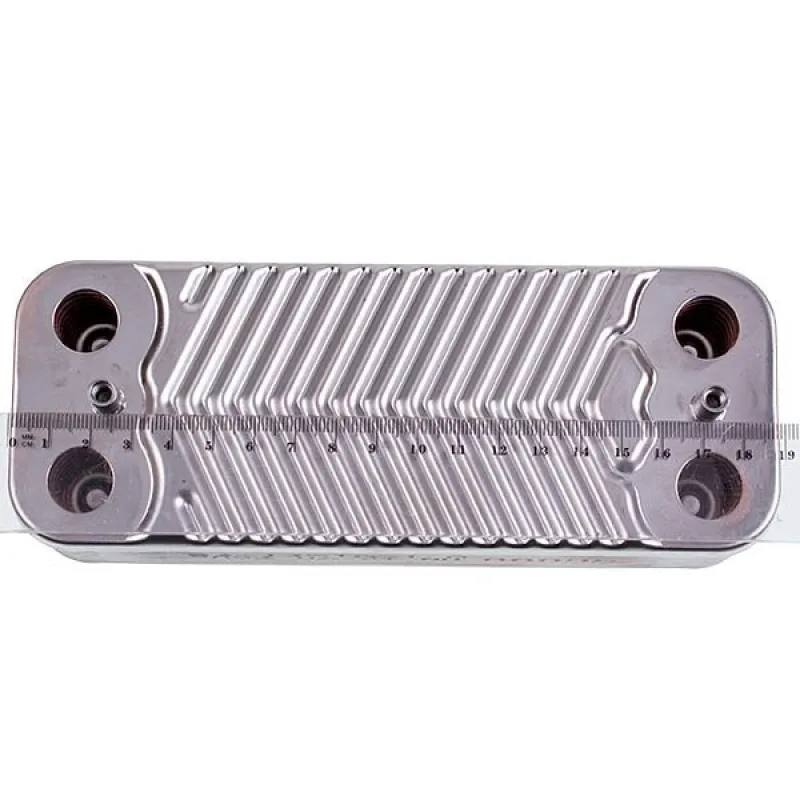

Length
191 mm
Number of plates
16
Material
Copper
Hole spacing
154 mm
Mounting centre distance
148 mm
Fastening type
2-а гвинтами
Heat exchanger type
DHW heat exchangers, secondary, plate-type
Hole spacing (width)
40 mm
Width
73 mm

Description

Secondary DHW plate heat exchanger 7006951209 with 16 plates for gas boilers, fixed with two screws. It transfers heat from the heating circuit to the tap water. Signs of failure: hot water heats poorly or the temperature jumps, heating pressure rises when a tap is open, the exchanger is clogged with scale. Before ordering, check code 7006951209, the dimensions and hole spacing against the old exchanger. Number of plates: 16 Length: 191 mm Width: 73 mm Depth: 43 mm Distance between holes: 154 mm Width between holes: 40 mm Distance between mounting centres: 148 mm Mounting type: 2 screws Material: copper Heat exchanger type: DHW, secondary, plate

Codes and compatible parts

Part codes

  • 7006951209-1

Returns
  • 14 days to return a part that was not installed, with its packaging kept. The buyer pays for return shipping.
  • A part with a manufacturing defect is replaced or refunded, and we pay for shipping.
