Compatibility with your appliance

No compatibility data for this part yet.

Send a photo of the rating plate

Where is the model number?

Look for the sticker (rating plate) on the body: behind the door or lid, on the back or a side panel. You need the line «Model», «Mod.», «Type» or «E-Nr».

I.T.M. code

7828745-3

bit-bit code: 57496

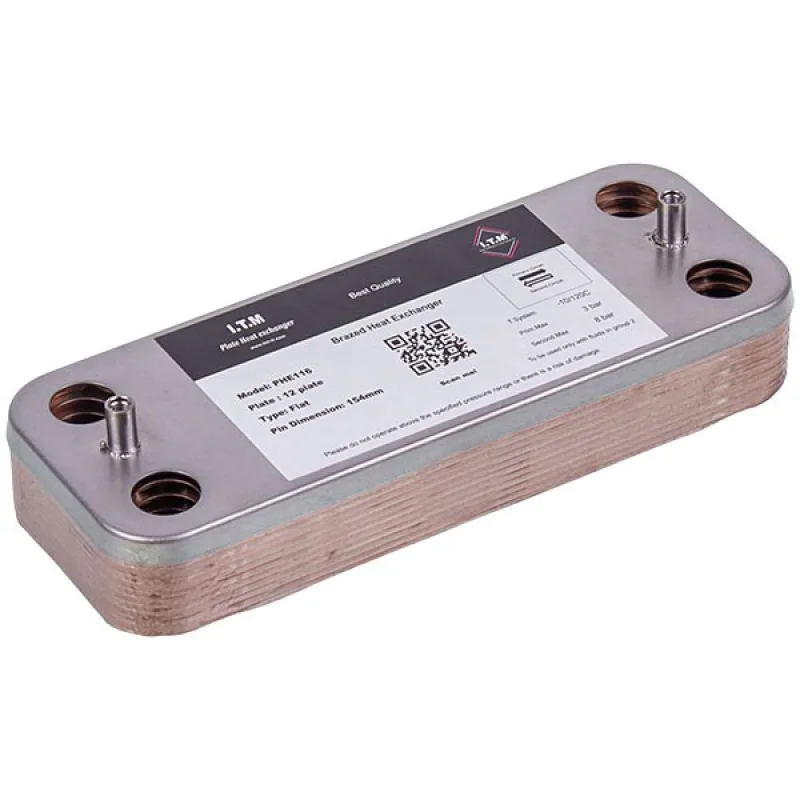

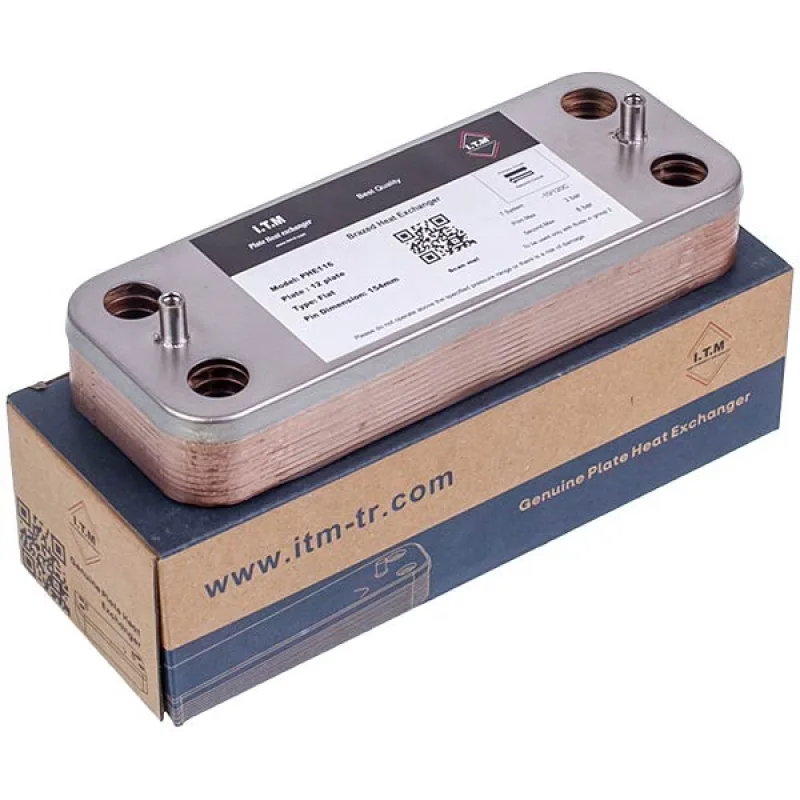

DHW plate heat exchanger 12 plates for Viessmann Vitopend 100 WH1D 7828745

Name: DHW plate heat exchanger 12 plates for Viessmann Vitopend 100 WH1D 7828745
Brand: I.T.M.
SKU: 57496
Price: 1995.00 UAH
Availability: InStock

1 995 ₴

Ships today, Wed 07.10

At the Nova Poshta branch Thu 08.10

Only 1 left

Delivery at Nova Poshta rates

Will it fit your appliance? Check by model

Just your phone — we will place the order for you by phone

We mark the parts that fit your model
Pay by card or on delivery
Cash on delivery — Nova Poshta fee 20 ₴ + 2%

Specifications

Part type: Heat exchanger

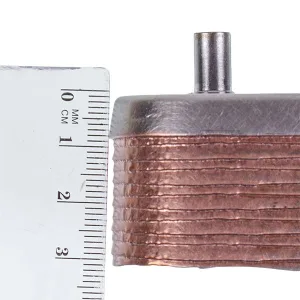

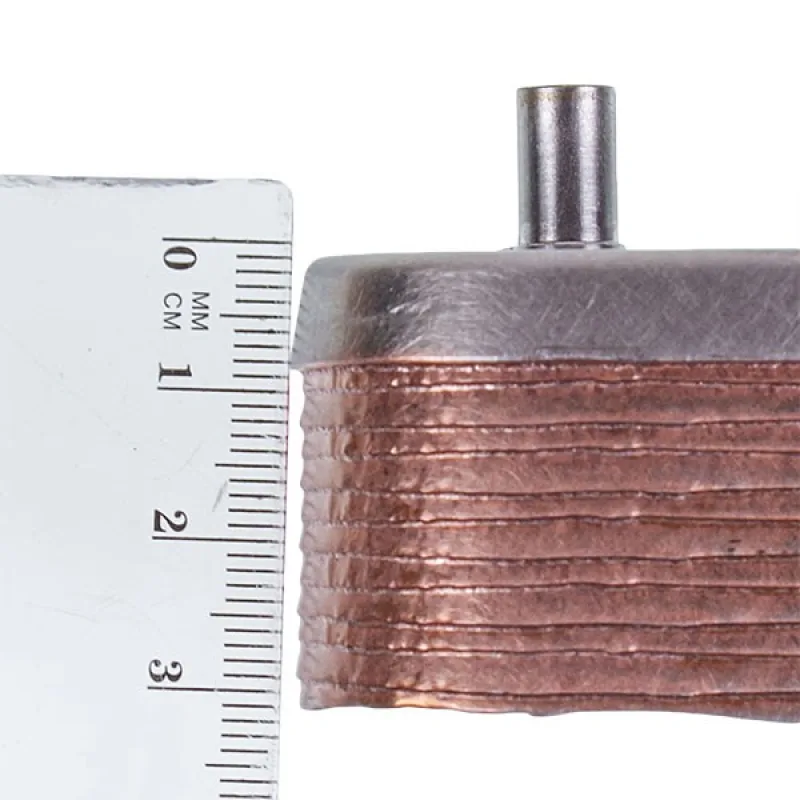

Depth: 30 mm

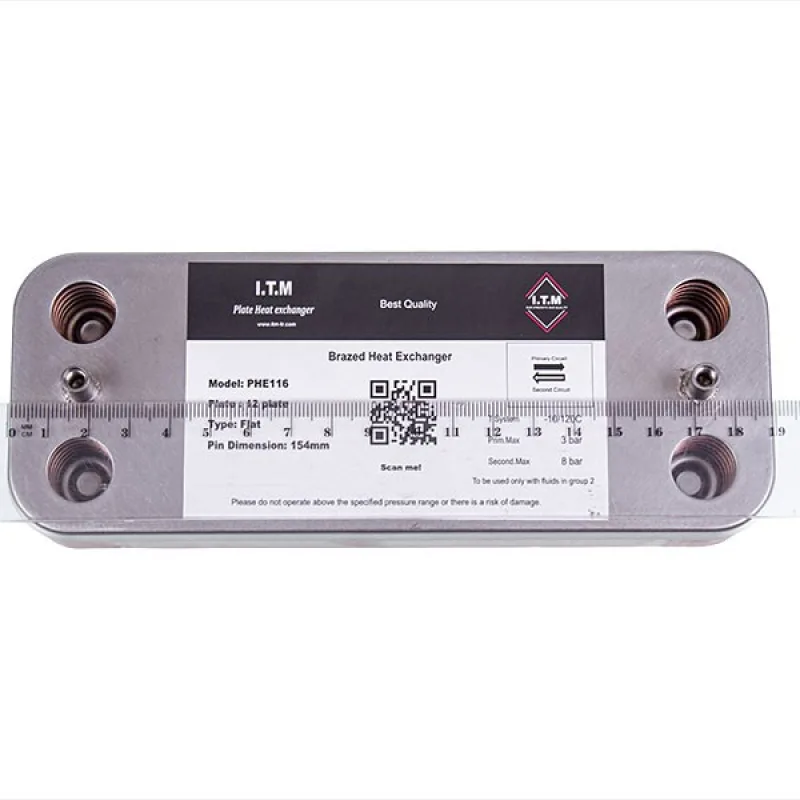

Length: 190 mm
Number of plates: 12
Material: Copper
Hole spacing: 154 mm
Mounting centre distance: 154 mm
Heat exchanger type: DHW heat exchangers, secondary, plate-type
Hole spacing (width): 40 mm
Width: 70 mm

Description

Secondary DHW plate heat exchanger 7828745 with 12 plates for a Viessmann Vitopend 100 WH1D gas boiler. It heats domestic hot water. Signs of failure: weak flow or unstable hot water temperature, scale, leaks. Used in Viessmann Vitopend 100 WH1D boilers. Part maker I.T.M. Before ordering, check the size and hole spacing. Code: 7828745 Plates: 12 Size: 190x70x30 mm Hole spacing: 154 mm Mount centre spacing: 154 mm Width between holes: 40 mm Material: copper

Codes and compatible parts

Part codes

7828745-3I.T.M.

Returns

14 days to return a part that was not installed, with its packaging kept. The buyer pays for return shipping.
A part with a manufacturing defect is replaced or refunded, and we pay for shipping.

Full return terms
