Compatibility with your appliance

No compatibility data for this part yet.

Send a photo of the rating plate

Where is the model number?

Look for the sticker (rating plate) on the body: behind the door or lid, on the back or a side panel. You need the line «Model», «Mod.», «Type» or «E-Nr».

EBI code

COD.744

bit-bit code: 41766

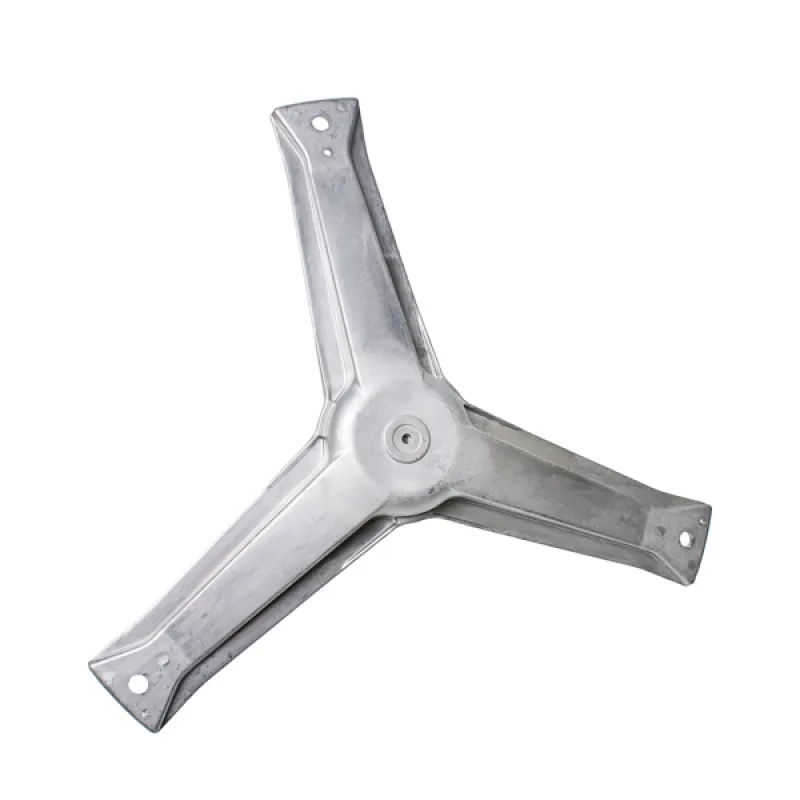

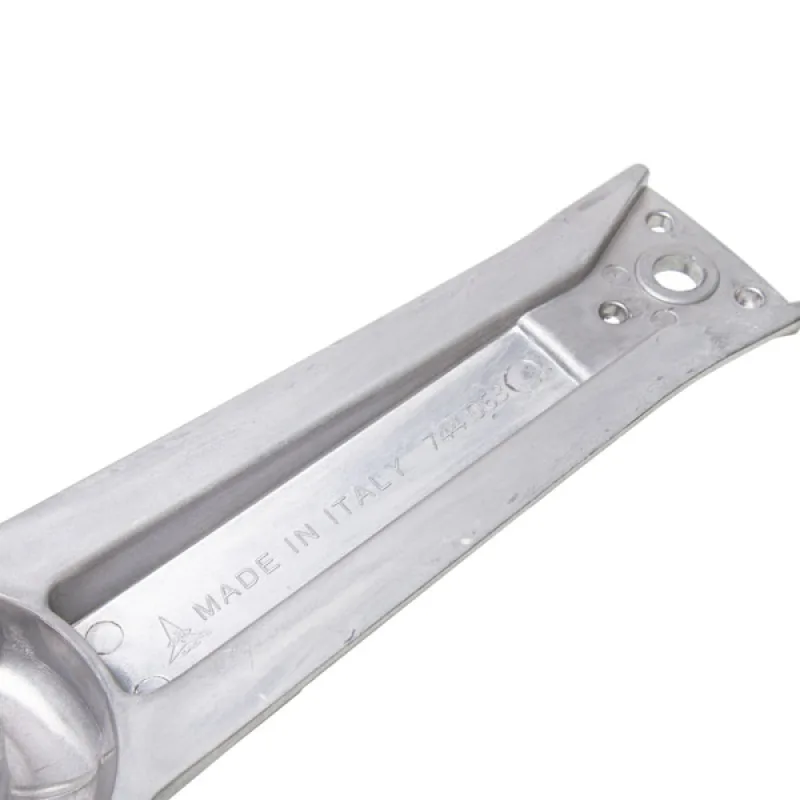

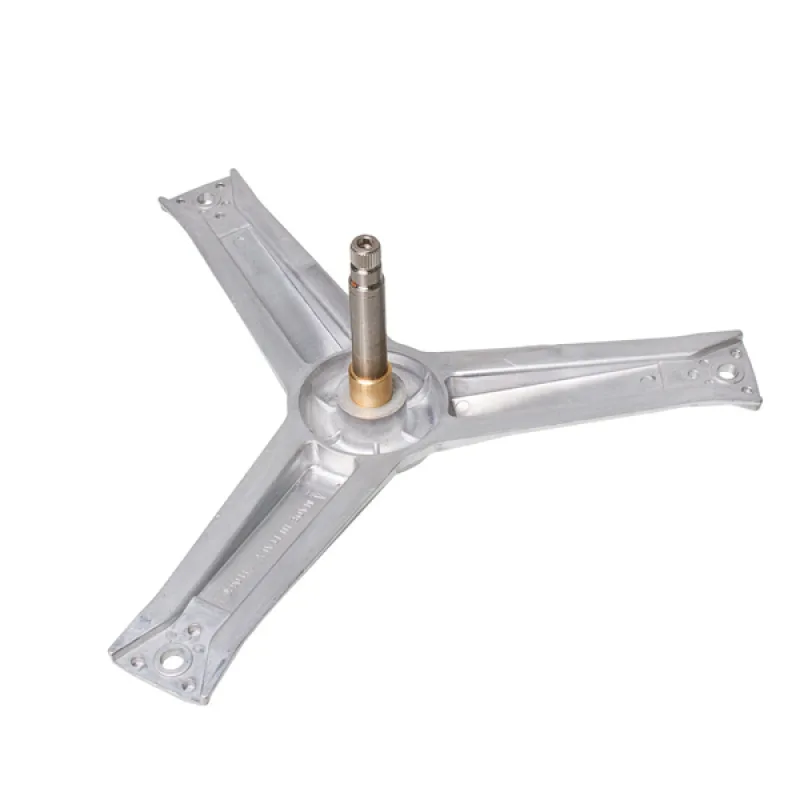

Drum spider 115 mm for Beko washing machine

Name: Drum spider 115 mm for Beko washing machine
Brand: EBI
SKU: 41766
Price: 1545.00 UAH
Availability: InStock

1 545 ₴

Ships today, Wed 07.10

At the Nova Poshta branch Thu 08.10

Only 1 left

Delivery at Nova Poshta rates

Will it fit your appliance? Check by model

Just your phone — we will place the order for you by phone

We mark the parts that fit your model
Pay by card or on delivery
Cash on delivery — Nova Poshta fee 20 ₴ + 2%

Specifications

Part type: Drum spider and support assemblies
Oil seal sleeve height (±1 mm): 21 mm
Oil seal sleeve diameter (±0.3 mm): 25 mm
Bearing 1 seat diameter (±0.3 mm): 17 mm
Bearing 2 seat diameter (±0.3 mm): 20 mm

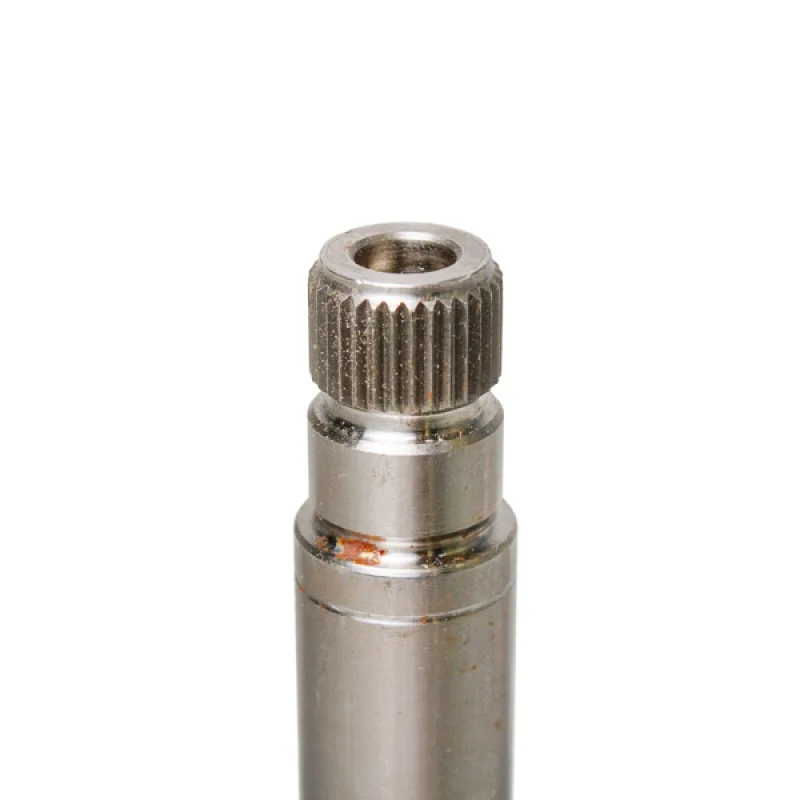

Shaft length (±2 mm): 115 mm
Drum mounting: 12 mm
Pulley mounting: М8
Bearings: 6203, 6204
Distance between bearings (±1 mm): 69 mm
Distance from shaft axis to drum mounting axis: 209 mm

Description

Drum spider for Beko washing machines with a 115 mm shaft for bearings 6203 and 6204. Replace it if the spider is cracked, corroded or the drum has play. Check the shaft and mounting dimensions against your old part before ordering. Matches code COD.744. Part maker: EBI. Shaft length: 115 mm Bearings: 6203, 6204 Bearing seat 1 diameter: 17 mm Bearing seat 2 diameter: 20 mm Distance between bearings: 69 mm Seal bushing diameter: 25 mm Seal bushing height: 21 mm Drum mounting: 12 mm Pulley mounting: M8 Shaft axis to drum mount axis: 209 mm

Codes and compatible parts

Part codes

COD.744EBI

Returns

14 days to return a part that was not installed, with its packaging kept. The buyer pays for return shipping.
A part with a manufacturing defect is replaced or refunded, and we pay for shipping.

Full return terms
