EBI code

COD.739

Compatible What does this mean?

A part by another maker with the same dimensions and specifications as the original. Lower price. The same return terms.

bit-bit code: 41763

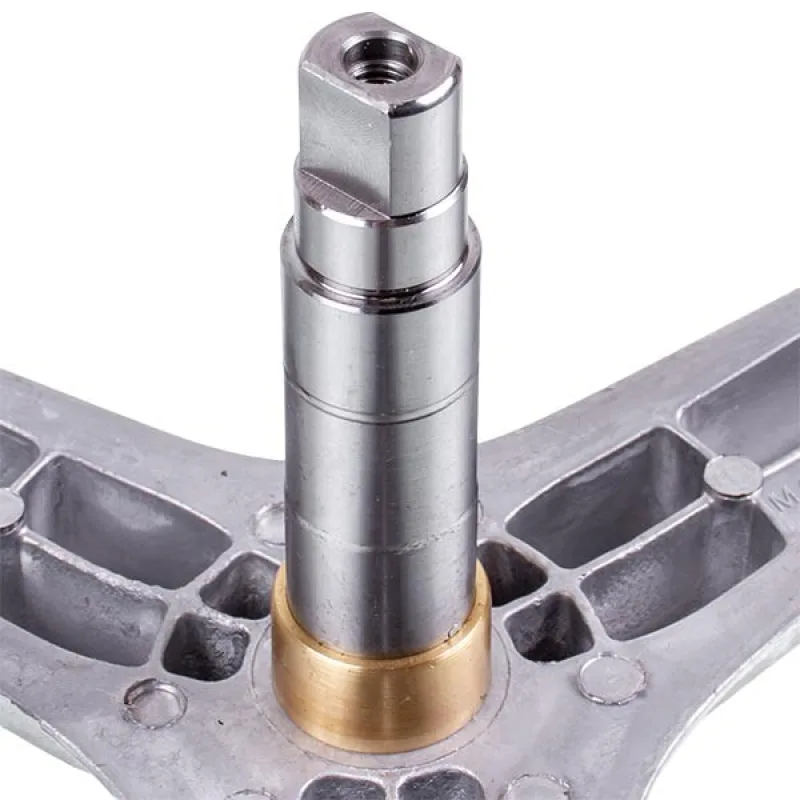

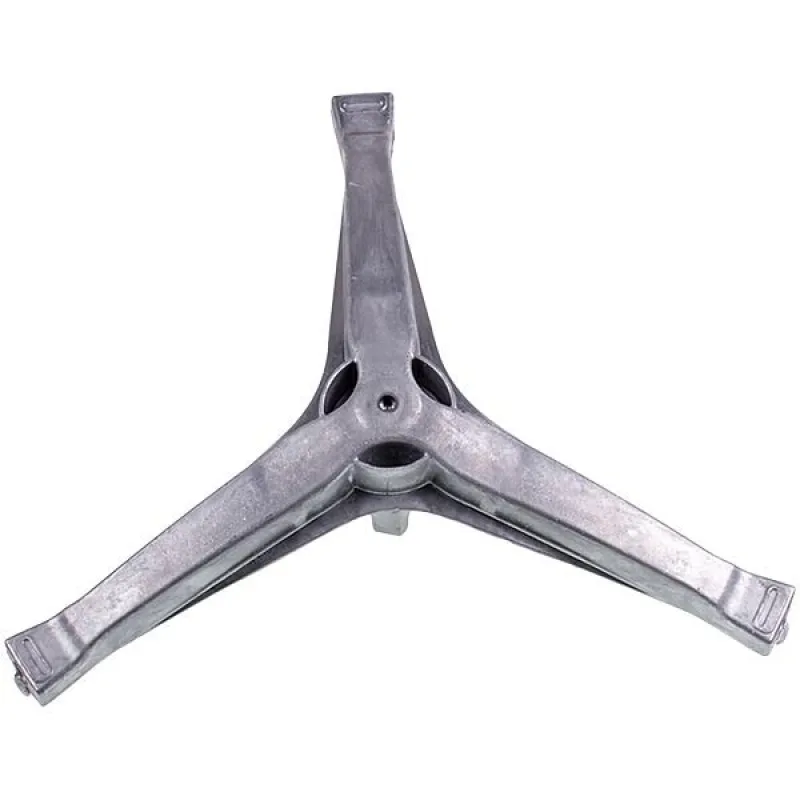

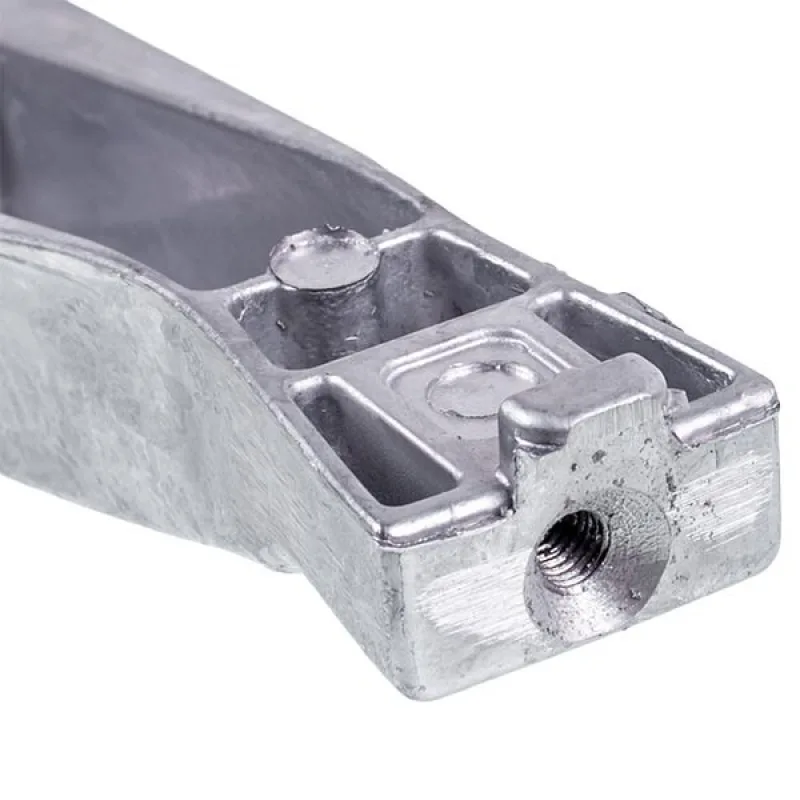

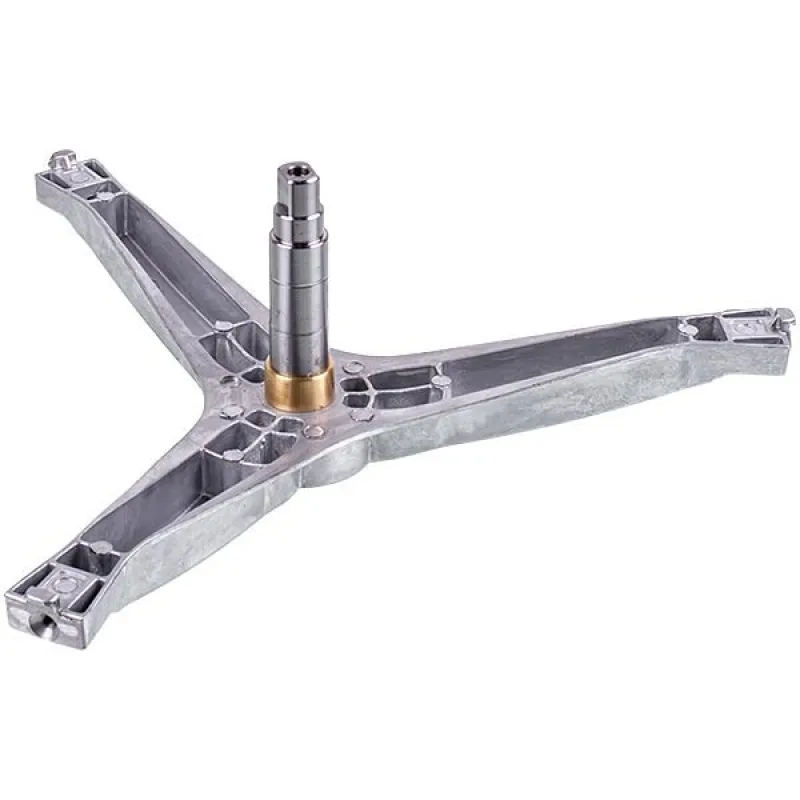

Drum spider 126 mm for Samsung washing machine (compatible)

Name: Drum spider 126 mm for Samsung washing machine (compatible)
Brand: EBI
SKU: 41763
Price: 1273.00 UAH
Availability: InStock

1 273 ₴

Ships today, Wed 28.10

At the Nova Poshta branch Thu 29.10

Only 3 left

Delivery at Nova Poshta rates

Will it fit your appliance? Check by model

Just your phone — we will place the order for you by phone

We mark the parts that fit your model
Pay by card or on delivery
Cash on delivery — Nova Poshta fee 20 ₴ + 2%

Specifications

Part type: Drum spider and support assemblies
Oil seal sleeve height (±1 mm): 19 mm
Flat height (±1 mm): 19 mm
Oil seal sleeve diameter (±0.3 mm): 35 mm
Bearing 1 seat diameter (±0.3 mm): 25 mm
Bearing 2 seat diameter (±0.3 mm): 30 mm
Shaft length (±2 mm): 126 mm
Drum mounting: М8
Pulley mounting: М10
Bearings: 6205, 6206
Distance between bearings (±1 mm): 73 mm
Distance from shaft axis to drum mounting axis: 246 mm
Внутрішній підшипник: 25
Зовнішній підшипник: 30

Description

Drum spider for Samsung washing machines with a 126 mm shaft for bearings 6205 and 6206. According to the compatibility database it fits 51 Samsung models. Replace it if the spider is cracked, corroded or the drum has play. This is a compatible part, not an original Samsung part. Matches code COD.739. Part maker: EBI. Shaft length: 126 mm Bearings: 6205, 6206 Bearing seat 1 diameter: 25 mm Bearing seat 2 diameter: 30 mm Distance between bearings: 73 mm Seal bushing diameter: 35 mm Seal bushing height: 19 mm Flat height: 19 mm Drum mounting: M8 Pulley mounting: M10 Shaft axis to drum mount axis: 246 mm

Fits models: Samsung UE40D5000PWXXH, Samsung UE55D7000LSXRU, Samsung WF0700NBE/YLV and 45 more.

Codes and compatible parts

Part codes

COD.739EBI

Fits

Fits: Samsung UE40D5000PWXXH, Samsung UE55D7000LSXRU, Samsung WF0700NBE/YLV, Samsung WF0700NBX/YLP, Samsung WF0700NCW/XEP, Samsung WF0700NCW/YLP and 42 more models.

Samsung 48

Fits: Samsung UE40D5000PWXXH
Fits: Samsung UE55D7000LSXRU
Fits: Samsung WF0700NBE/YLV
Fits: Samsung WF0700NBX/YLP
Fits: Samsung WF0700NCW/XEP
Fits: Samsung WF0700NCW/YLP
Fits: Samsung WF0702NBE/XEU
Fits: Samsung WF0702NBS/XEF
Fits: Samsung WF0702WJV/XEO
Fits: Samsung WF0702WJW
Fits: Samsung WF0702WKE
Fits: Samsung WF0702WKE/XEU
Fits: Samsung WF0702WKE/XSH
Fits: Samsung WF0790NCX/YLO
Fits: Samsung WF1700NHW/YLE
Fits: Samsung WF1700W5W/UA
Fits: Samsung WF1700W5W/YLP
Fits: Samsung WF1700WCW/UA
Fits: Samsung WF1700WCW/YLP
Fits: Samsung WF1700WRW
Fits: Samsung WF1702WCC/YLP
Fits: Samsung WF1702WEU/XFA
Fits: Samsung WF1702WRK/YLP
Fits: Samsung WF1702WSW/XEP
Fits: Samsung WF1702XQR
Fits: Samsung WF1702XQR/UA
Fits: Samsung WF1702YQC/YLP
Fits: Samsung WF1702YQQ
Fits: Samsung WF1702YQR
Fits: Samsung WF1802LSW/XEP

All 48 compatible models

Returns

14 days to return a part that was not installed, with its packaging kept. The buyer pays for return shipping.
A part with a manufacturing defect is replaced or refunded, and we pay for shipping.
