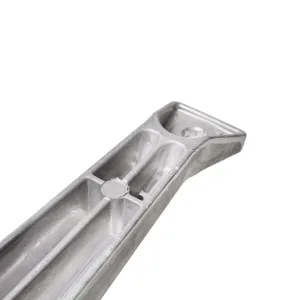

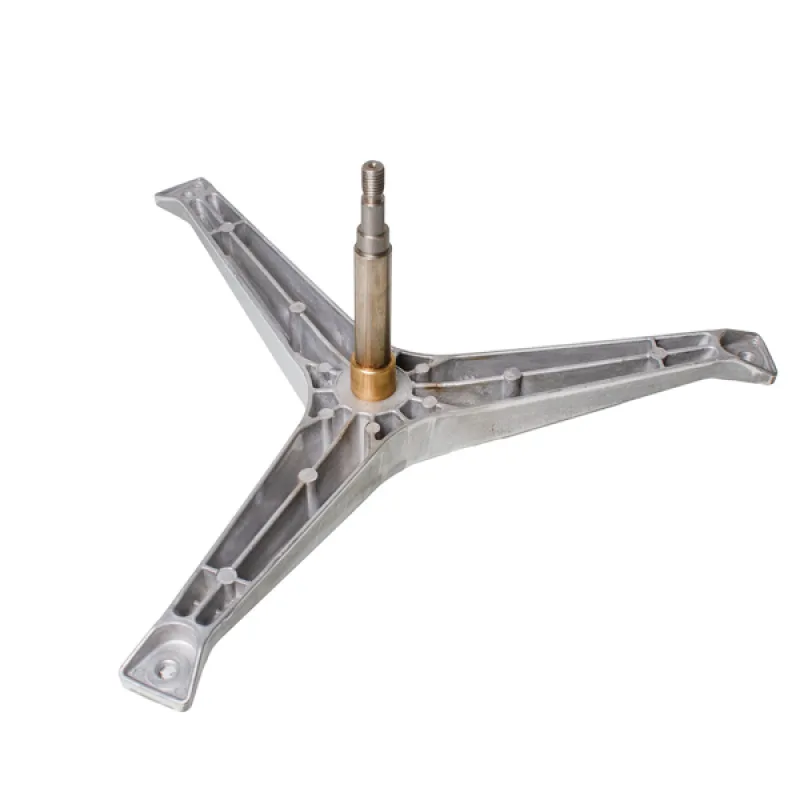

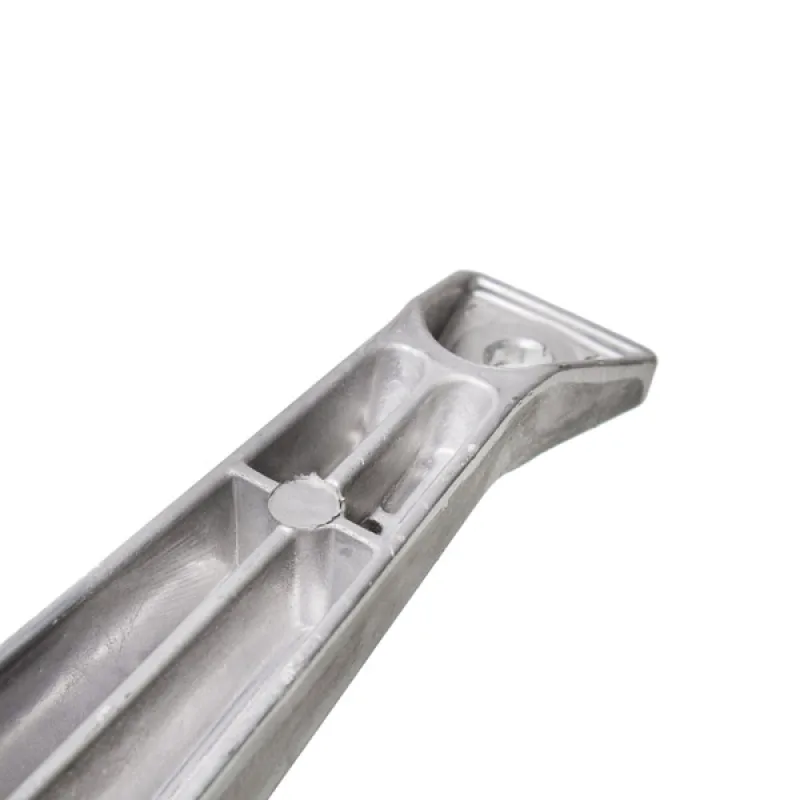

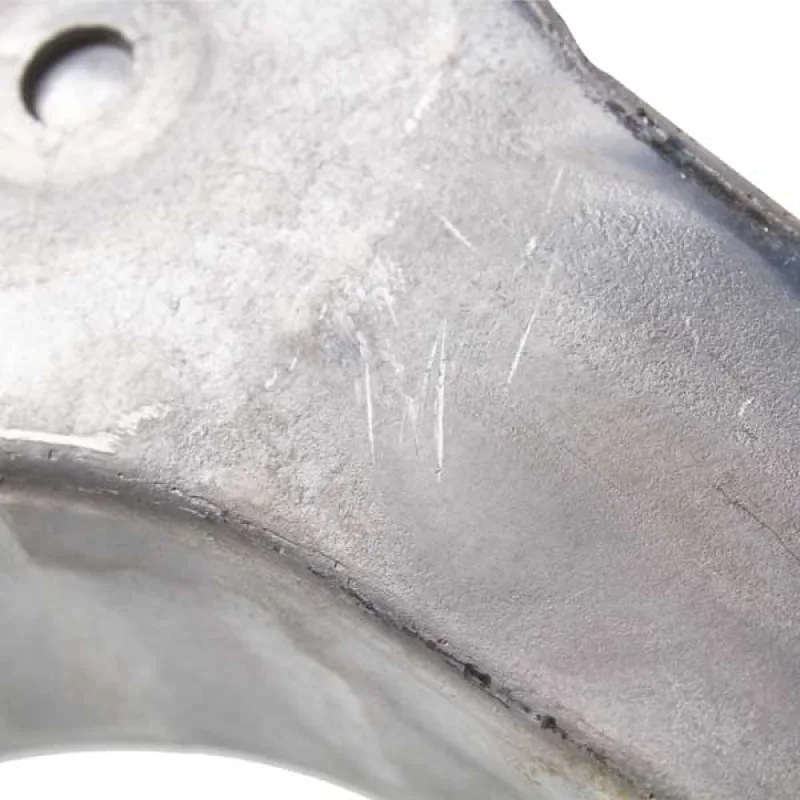

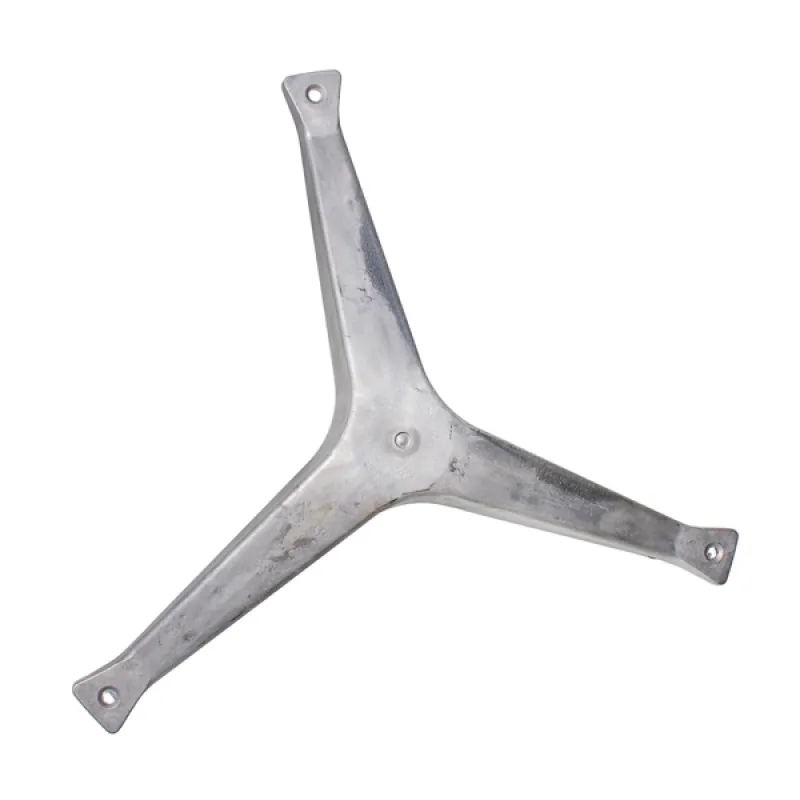

Drum spider 147 mm for Samsung washing machine

Name: Drum spider 147 mm for Samsung washing machine
Brand: EBI
SKU: 41770
Price: 1495.00 UAH
Availability: InStock

1 495 ₴

Ships today, Wed 07.10

At the Nova Poshta branch Thu 08.10

Only 1 left

Delivery at Nova Poshta rates

Will it fit your appliance? Check by model

Just your phone — we will place the order for you by phone

We mark the parts that fit your model
Pay by card or on delivery
Cash on delivery — Nova Poshta fee 20 ₴ + 2%

Specifications

Part type: Drum spider and support assemblies
Oil seal sleeve height (±1 mm): 20 mm
Flat height (±1 mm): 18 mm
Oil seal sleeve diameter (±0.3 mm): 25 mm
Bearing 1 seat diameter (±0.3 mm): 17 mm
Bearing 2 seat diameter (±0.3 mm): 20 mm
Shaft length (±2 mm): 147 mm
Drum mounting: 8.5 mm

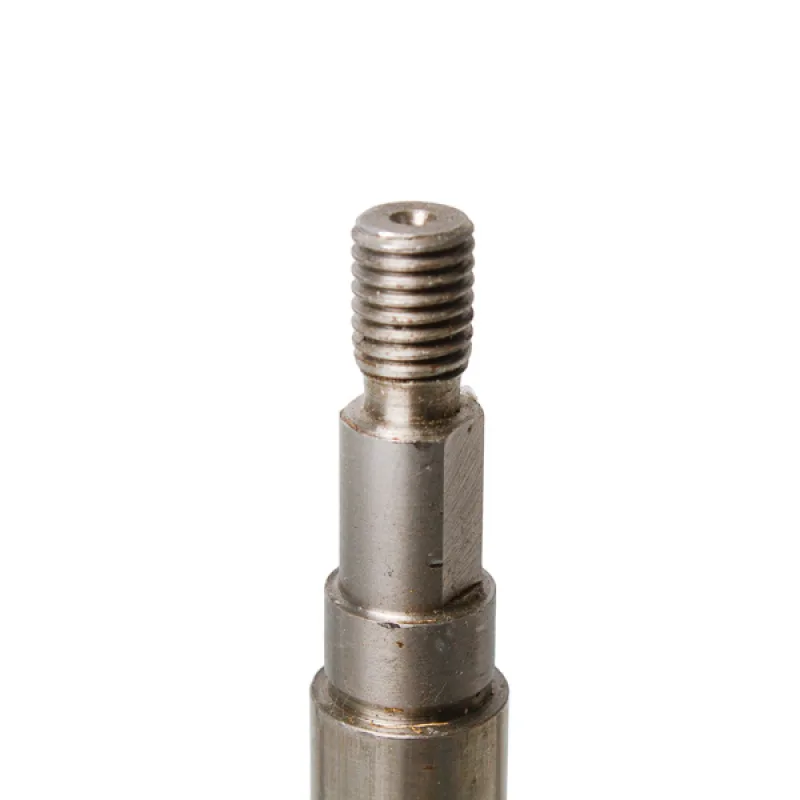

Pulley mounting: M12
Distance between bearings (±1 mm): 76 mm
Distance from shaft axis to drum mounting axis: 218 mm

Description

Drum spider for Samsung washing machines with a 147 mm shaft. According to the compatibility database it fits 45 Samsung models. Replace it if the spider is cracked, corroded or the drum has play. Check the shaft and mounting dimensions against your old part before ordering. Matches code COD.733. Part maker: EBI. Shaft length: 147 mm Bearing seat 1 diameter: 17 mm Bearing seat 2 diameter: 20 mm Distance between bearings: 76 mm Seal bushing diameter: 25 mm Seal bushing height: 20 mm Flat height: 18 mm Drum mounting: 8,5 mm Pulley mounting: M12 Shaft axis to drum mount axis: 218 mm

Codes and compatible parts

Part codes

COD.733EBI

Fits

Fits: Samsung B813J, Samsung B815J, Samsung B913J, Samsung B915J, Samsung ES-P8, Samsung M601 and 38 more models.

Samsung 44

Fits: Samsung B813J
Fits: Samsung B815J
Fits: Samsung B913J
Fits: Samsung B915J
Fits: Samsung ES-P8
Fits: Samsung M601
Fits: Samsung M801
Fits: Samsung P6091
Fits: Samsung P801
Fits: Samsung P803J
Fits: Samsung P805J
Fits: Samsung P8085

All 44 compatible models
