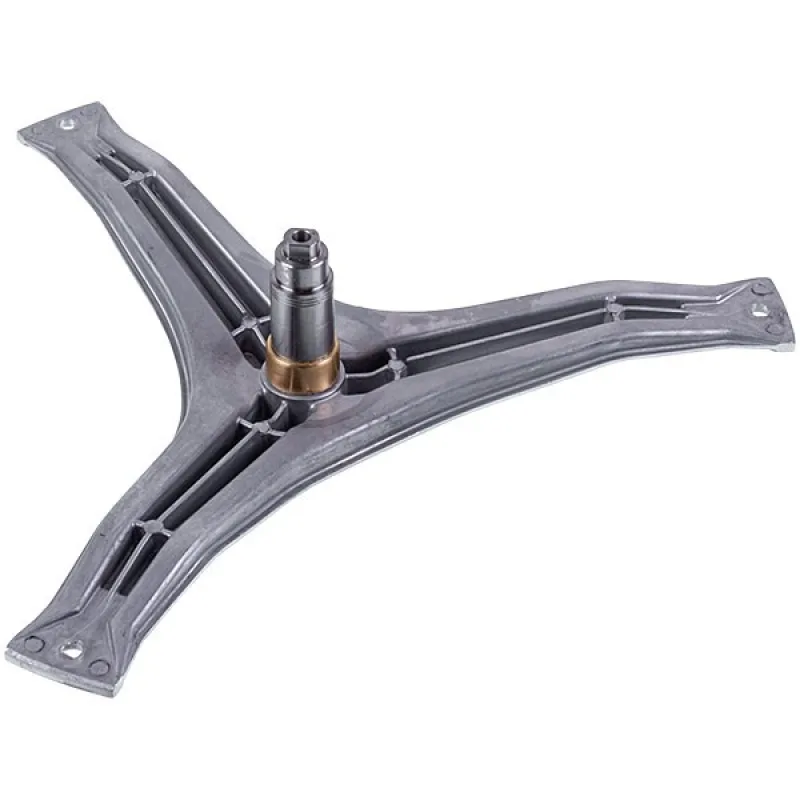

Drum spider for Bosch, Siemens washing machine, 82 mm shaft

Photo 1 of 4

Compatibility with your appliance

No compatibility data for this part yet.

Send a photo of the rating plate
Where is the model number?

Look for the sticker (rating plate) on the body: behind the door or lid, on the back or a side panel. You need the line «Model», «Mod.», «Type» or «E-Nr».

EBI code
COD.784

bit-bit code: 55329

Drum spider for Bosch, Siemens washing machine, 82 mm shaft

1 608 ₴

Ships today, Mon 16.11

At the Nova Poshta branch Tue 17.11

Only 3 left

Delivery at Nova Poshta rates

Just your phone — we will place the order for you by phone

  • We mark the parts that fit your model
  • Pay by card or on delivery
  • Cash on delivery — Nova Poshta fee 20 ₴ + 2%

Specifications

Part type
Drum spider and support assemblies
Oil seal sleeve height (±1 mm)
18 mm
Flat height (±1 mm)
8.3 mm
Oil seal sleeve diameter (±0.3 mm)
35 mm
Bearing 1 seat diameter (±0.3 mm)
25 mm
Bearing 2 seat diameter (±0.3 mm)
30 mm
Shaft length (±2 mm)
82 mm
Drum mounting
10 mm
Pulley mounting
М8
Distance between bearings (±1 mm)
40.5 mm
Distance from shaft axis to drum mounting axis
220 mm
Внутрішній підшипник
25
Зовнішній підшипник
30
Довжина вала (±2 mm)
82 mm

Description

Drum spider with an 82 mm shaft for a Bosch, Siemens washing machine. It holds the drum and transfers rotation from the pulley. Signs of failure: drum play, knocking during spin, cracks or corrosion on the spider, a worn shaft under the seal. Used in Bosch and Siemens washing machines. Part maker EBI, code COD.784. Shaft length: 82 mm (±2 mm) Bearing seat 1 diameter: 25 mm Bearing seat 2 diameter: 30 mm Seal sleeve diameter: 35 mm Seal sleeve height: 18 mm Flat height: 8.3 mm Distance between bearings: 40.5 mm Shaft axis to drum mount axis: 220 mm Drum mounting: 10 mm Pulley mounting: M8

Codes and compatible parts

Part codes

  • COD.784EBI

Returns

  • 14 days to return a part that was not installed, with its packaging kept. The buyer pays for return shipping.
  • A part with a manufacturing defect is replaced or refunded, and we pay for shipping.
