Compatibility with your appliance

162 models in the compatibility catalogue

Send a photo of the rating plate

Where is the model number?

Look for the sticker (rating plate) on the body: behind the door or lid, on the back or a side panel. You need the line «Model», «Mod.», «Type» or «E-Nr».

EBI code

COD.769

Compatible What does this mean?

A part by another maker with the same dimensions and specifications as the original. Lower price. The same return terms.

bit-bit code: 39803

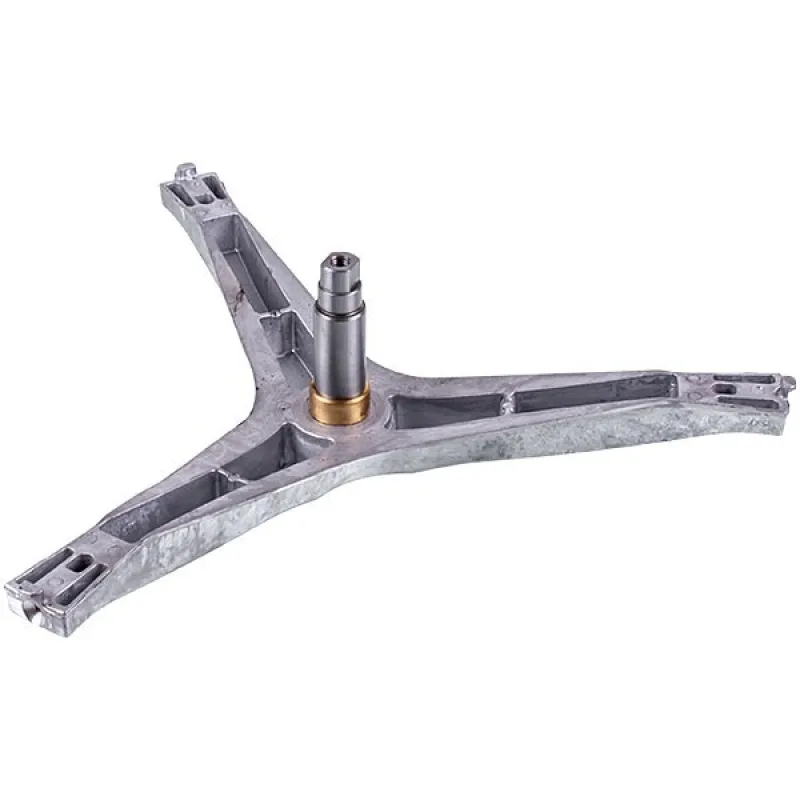

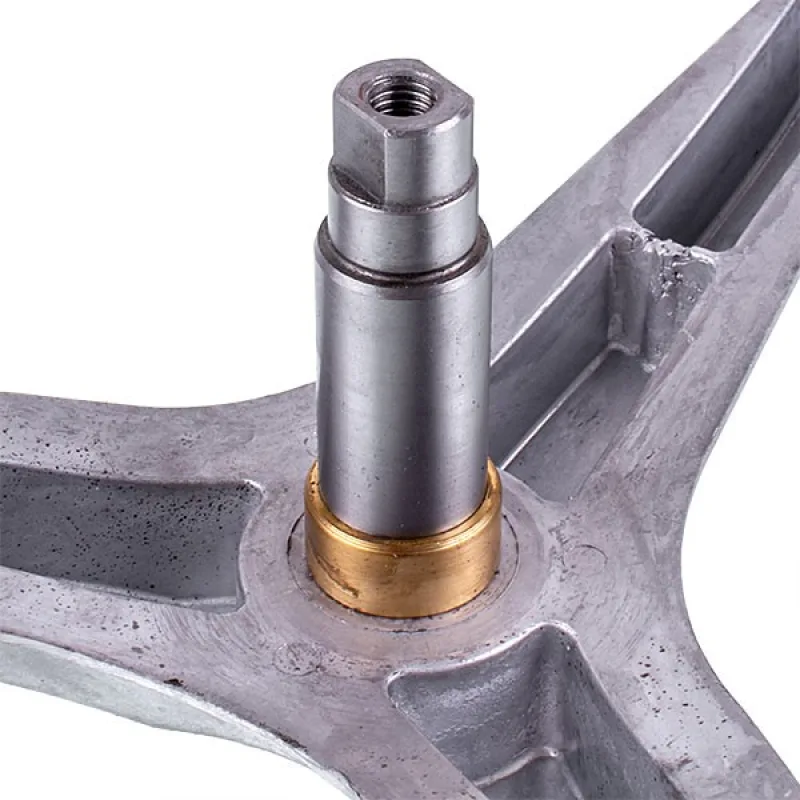

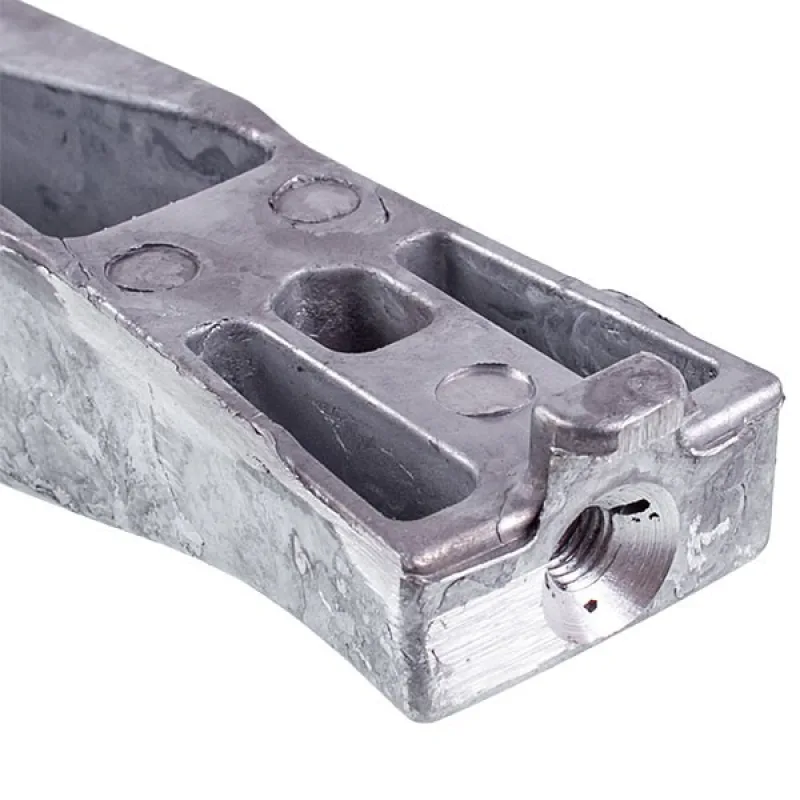

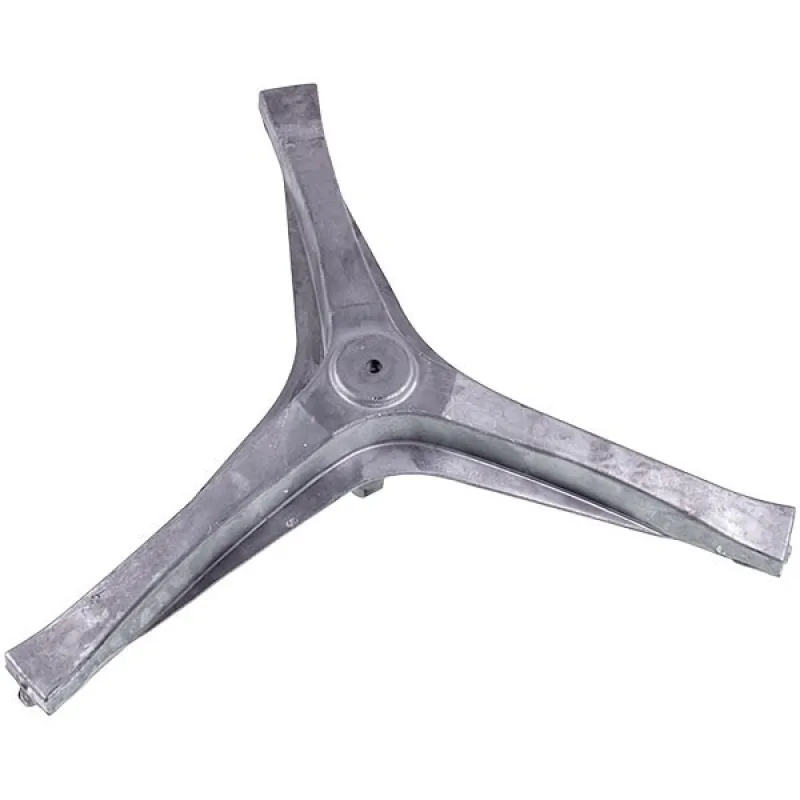

Drum spider for Samsung washing machine (compatible)

Name: Drum spider for Samsung washing machine (compatible)
Brand: EBI
SKU: 39803
Price: 1545.00 UAH
Availability: InStock

1 545 ₴

Ships today, Wed 07.10

At the Nova Poshta branch Thu 08.10

Only 2 left

Delivery at Nova Poshta rates

Will it fit your appliance? Check by model

Just your phone — we will place the order for you by phone

We mark the parts that fit your model
Pay by card or on delivery
Cash on delivery — Nova Poshta fee 20 ₴ + 2%

Specifications

Part type: Drum spider and support assemblies
Oil seal sleeve height (±1 mm): 17 mm
Flat height (±1 mm): 14 mm
Oil seal sleeve diameter (±0.3 mm): 35 mm
Bearing 1 seat diameter (±0.3 mm): 25 mm
Bearing 2 seat diameter (±0.3 mm): 30 mm
Shaft length (±2 mm): 100 mm
Drum mounting: М8
Pulley mounting: M12
Bearings: 6205, 6206
Distance between bearings (±1 mm): 54.5 mm
Distance from shaft axis to drum mounting axis: 253 mm

Description

Drum spider for a washing machine. According to the compatibility database it fits 164 Samsung models. Replace it when the spider is cracked or broken and the drum knocks or wobbles. Check the size and bearings against the old part. Matches code COD.769. Part maker: EBI. This is a compatible part, not an original Samsung part. Seal bushing height: 17 mm. Flat height: 14 mm. Seal bushing diameter: 35 mm. Bearing 1 seat diameter: 25 mm. Bearing 2 seat diameter: 30 mm. Shaft length: 100 mm. Drum fixing: M8. Pulley fixing: M12. Bearings: 6205, 6206. Distance between bearings: 54.5 mm. Distance from shaft axis to drum fixing axis: 253 mm.

Codes and compatible parts

Part codes

COD.769EBI

Fits

Fits: Samsung WF60F4E0N0W/EO, Samsung WF60F4E0N0W/ET, Samsung WF60F4E0N0W/LE, Samsung WF60F4E0N0W/LV, Samsung WF60F4E0N2W, Samsung WF60F4E0N2W/EC and 156 more models.

Samsung 162

Fits: Samsung WF60F4E0N0W/EO
Fits: Samsung WF60F4E0N0W/ET
Fits: Samsung WF60F4E0N0W/LE
Fits: Samsung WF60F4E0N0W/LV
Fits: Samsung WF60F4E0N2W
Fits: Samsung WF60F4E0N2W/EC
Fits: Samsung WF60F4E0N2W/EE
Fits: Samsung WF60F4E0N2W/EF
Fits: Samsung WF60F4E0N2W/EN
Fits: Samsung WF60F4E0N2W/EO
Fits: Samsung WF60F4E0N2W/LE
Fits: Samsung WF60F4E0W0W

All 162 compatible models

Returns

14 days to return a part that was not installed, with its packaging kept. The buyer pays for return shipping.
A part with a manufacturing defect is replaced or refunded, and we pay for shipping.

Full return terms
