Samsung code

DC97-15184A

Original Samsung

bit-bit code: 10140

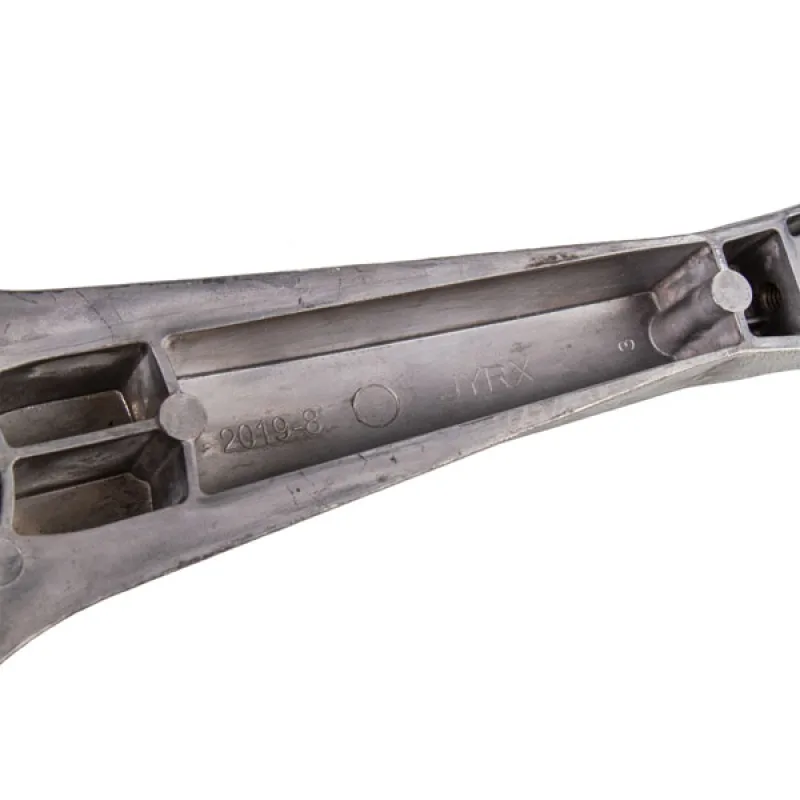

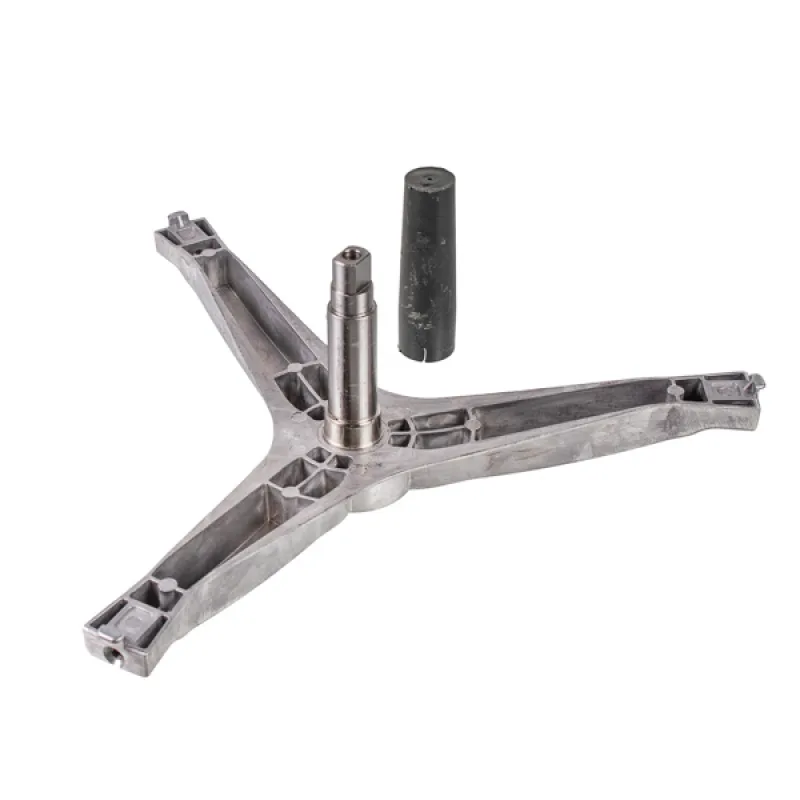

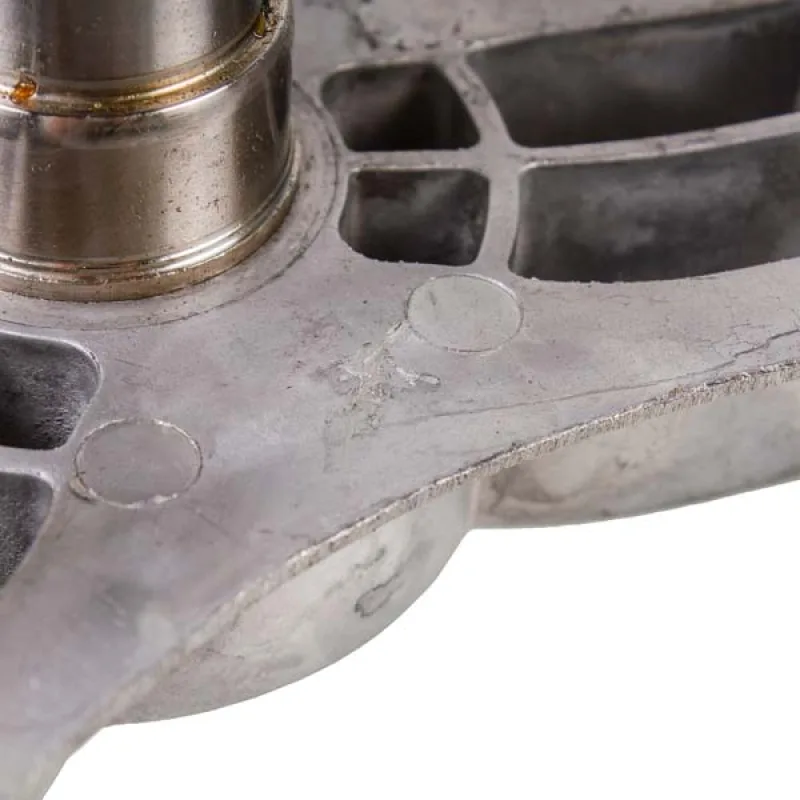

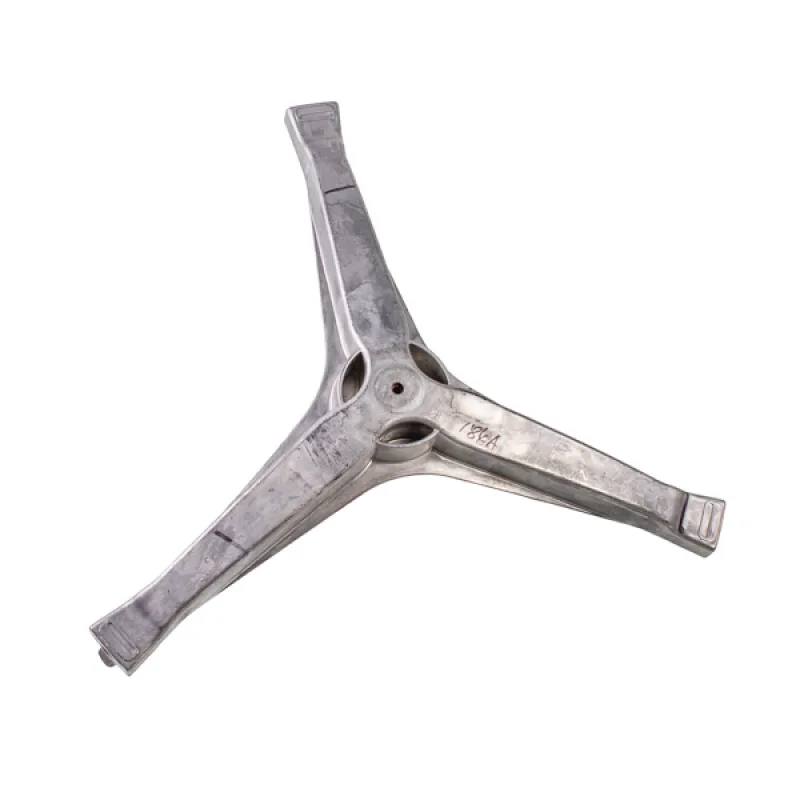

Drum spider for Samsung washing machine DC97-15184A

Name: Drum spider for Samsung washing machine DC97-15184A
Brand: Samsung
SKU: 10140
Price: 807.00 UAH
Availability: InStock

807 ₴

Ships today, Wed 07.10

At the Nova Poshta branch Thu 08.10

Delivery at Nova Poshta rates

Will it fit your appliance? Check by model

Just your phone — we will place the order for you by phone

We mark the parts that fit your model
Pay by card or on delivery
Cash on delivery — Nova Poshta fee 20 ₴ + 2%

Specifications

Part type: Drum spider and support assemblies
Oil seal sleeve diameter (±0.3 mm): 35 mm
Shaft length (±2 mm): 125.5 mm

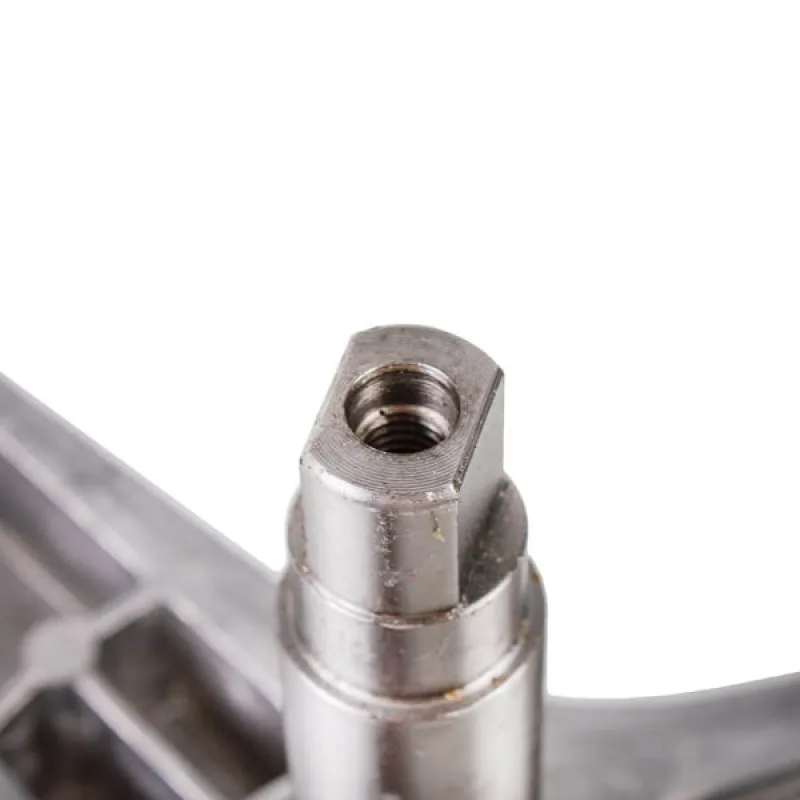

Pulley mounting: М10
Distance between bearings (±1 mm): 73 mm
Distance from shaft axis to drum mounting axis: 245 mm

Description

Original drum spider for a Samsung washing machine. Replace it when the spider is cracked or broken, the drum wobbles or the shaft is worn. Before ordering, check code DC97-15184A on the old part or in the manufacturer catalogue. Fits Samsung washing machines. Seal bushing diameter: 35 mm Shaft length: 125.5 mm Pulley mount: M10 Distance between bearings: 73 mm Shaft axis to drum mount axis: 245 mm

Codes and compatible parts

Part codes

DC97-15184ASamsung

Fits

Fits: Samsung WF0690NRW, Samsung WF0692NRY/YLP, Samsung WF10654YJV, Samsung WF10684YJE/XEG, Samsung WF9692GQR.

Fits: Samsung WF0690NRW
Fits: Samsung WF0692NRY/YLP
Fits: Samsung WF10654YJV
Fits: Samsung WF10684YJE/XEG
Fits: Samsung WF9692GQR
