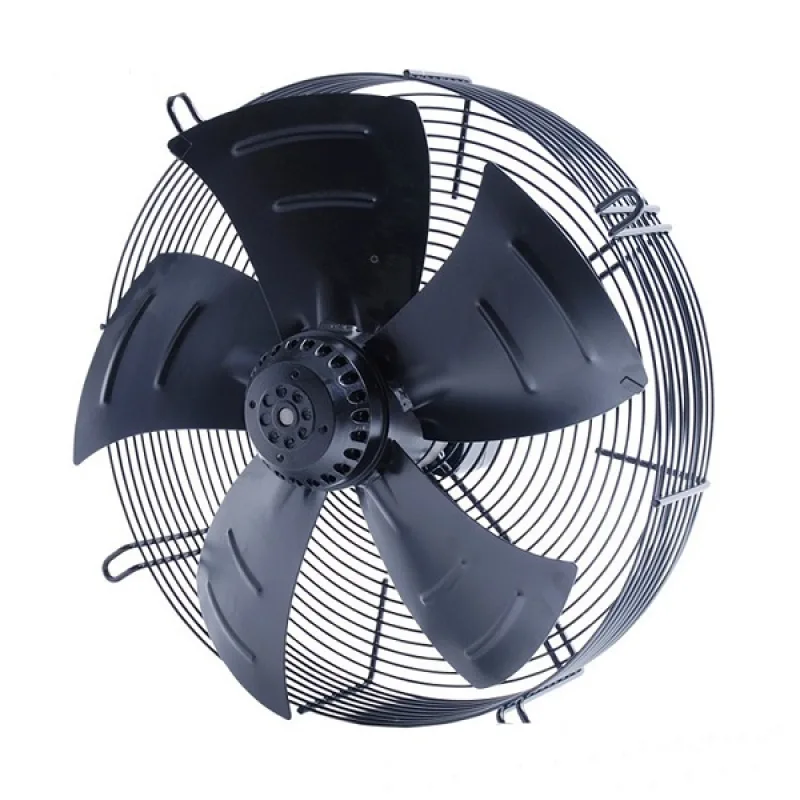

Осьовий вентилятор Weiguang YWF4D-500S-137/35-G 380V 1300rpm 6570 м3/год

Photo 1 of 4

Compatibility with your appliance

No compatibility data for this part yet.

Send a photo of the rating plate
Where is the model number?

Look for the sticker (rating plate) on the body: behind the door or lid, on the back or a side panel. You need the line «Model», «Mod.», «Type» or «E-Nr».

Weiguang code
YWF4D-500-S

Original Weiguang

bit-bit code: 40433

Осьовий вентилятор Weiguang YWF4D-500S-137/35-G 380V 1300rpm 6570 м3/год

5 510 ₴

Out of stock

  • We mark the parts that fit your model
  • Pay by card or on delivery
  • Cash on delivery — Nova Poshta fee 20 ₴ + 2%

Specifications

Impeller diameter
500 mm
Power
414 W
Air direction
S - suction
Voltage
380 V
Capacity (m³/h)
6570
Current
0.9 A
Country of origin
China
Temperature range
-30 °C … 60 °C
Type
Fan assembly
Motor type
Three-phase
Noise level (dB)
72
Rotation speed
1300 rpm
Frequency
50 Hz

Description

Осевой вентилятор Weiguang YWF4D-500-S-137/35-G 380V 1300rpm 6570 м3/час

Codes and compatible parts

Part codes

  • YWF4D-500-SWeiguang
