Weiguang code

YWF4E-450-S

bit-bit code: 40440

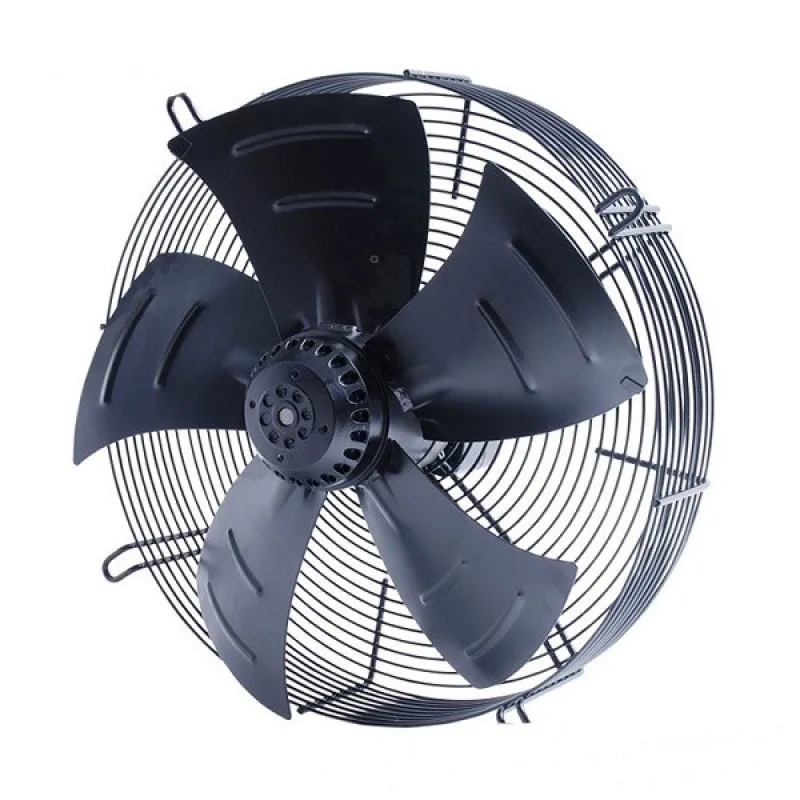

Осьовий вентилятор Weiguang YWF4E-450S-102/60-G 220 В 1350rpm 4620 м3/год

Name: Осьовий вентилятор Weiguang YWF4E-450S-102/60-G 220 В 1350rpm 4620 м3/год
Brand: Weiguang
SKU: 40440
Price: 3423.00 UAH
Availability: InStock

3 423 ₴

Ships today, Tue 27.10

At the Nova Poshta branch Wed 28.10

Delivery at Nova Poshta rates

Will it fit your appliance? Check by model

Just your phone — we will place the order for you by phone

We mark the parts that fit your model
Pay by card or on delivery
Cash on delivery — Nova Poshta fee 20 ₴ + 2%

Specifications

Part type: Вентилятор
Impeller diameter: 450 mm
Power: 250 W
Air direction: S - suction
Voltage: 220 V
Capacity (m³/h): 4620
Current: 1.2 A
Country of origin: China
Temperature range: -30 °C … 60 °C
Type: Fan assembly
Motor type: Single-phase
Noise level (dB): 68
Rotation speed: 1350 rpm
Frequency: 50 Hz

Description

Axial fan YWF4E-450S-102/60-G, complete unit with a single phase motor, for refrigeration and ventilation equipment. Replace it when the fan does not turn, hums or is very noisy. Matches code YWF4E-450-S. Maker: Weiguang. Impeller diameter: 450 mm. Power: 250 W. Air direction: S, suction. Voltage: 220 V. Airflow: 4620 m³/h. Current: 1.2 A. Country of manufacture: China. Temperature range: from minus 30 to plus 60°C. Motor type: single phase. Noise level: 68 dB. Speed: 1350 rpm. Frequency: 50 Hz.

Codes and compatible parts

Part codes

YWF4E-450-SWeiguang
